AI-supported requirements analysis

Identification, analysis and subsequent processing of requirements for a needed system or product are central building blocks of any procurement process. Requirements must comprehensively reflect the needs of future users and be formulated as clearly and unambiguously as possible, so that contracting authorities can use them to create performance specifications. Requirements must not leave any room for interpretation by contractors and must precisely and unambiguously define an agreed scope of performance. This is the only way to ensure that the delivered system actually meets the needs of its users. If the requirements are not clear, subsequent rescheduling and refinements in the project will drive up risks and costs. Requirements are therefore an important link between users, commissioning entities and the contracted industry.

The »Requirements Analysis Toolkit« (RAT) was developed to minimize the risk associated with ambiguous requirements and employs various building blocks to eliminate ambiguities. Thus, in addition to ensuring the linguistic quality of each individual requirement, the focus is also on analyzing and consolidating the overall body of requirements for consistent technical language and identification of redundancies. In addition, requirements are mapped to existing elements or components in the company portfolio to help identify gaps. For this purpose, it is also necessary to classify, search, and organize the list of requirements according to various content-related and formal criteria. This is the only way to gain an overview of the complete list of requirements.

Because there has never been tool-based support to perform all of these tasks up to now, project team members have had to do most of this work manually. This is not only very time-consuming and cost-intensive, but also almost impossible, especially when staff are faced with extensive requirements lists. RAT changes all this. The tool helps project team members to obtain requirements that are as clear and unambiguous as possible and then to map them to existing portfolio elements.

The target group for RAT comprises, in particular, organizations that commission systems from the industry or suppliers and thus have to describe desired services without any ambiguity. These could be public sector procurement offices or procurement and logistics departments of large companies or system integrators for example.

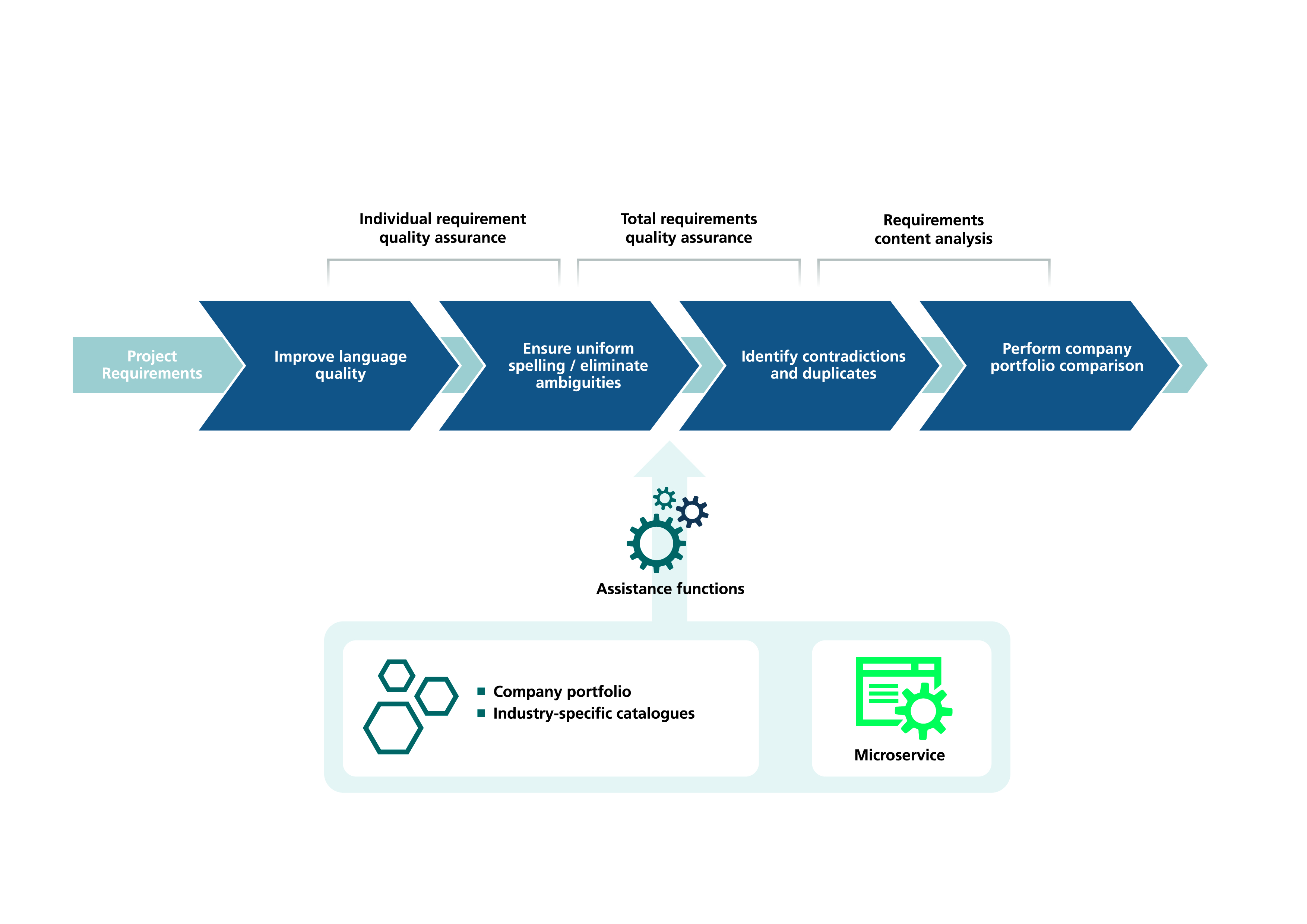

RAT offers a semi-automated approach to processing requirements. First, users are alerted to problematic passages in requirements which they can then manually reformulate. Afterwards, RAT makes suggestions for decisions that need to be made during subsequent processing. These suggestions can b either confirmed or rejected interactively by the user.

For this purpose, a number of microservices were implemented and are employed within a closed tool. These microservices analyse the requirements, perform linguistic quality assurance and consolidate the requirements.

In the course of the analysis, the requirement is first broken down into its content and its linguistic components system word, process word, priority/modal verb, condition, type of system activity, object and adjuncts.

On that basis, RAT can now performa semantic search of the full list of requirements and the classification of each requirement according to its content, i.e. functional and non-functional. Moreover, requirements can be classified according to a range of criteria, such as whether they are »IT-relevant« or »non- IT-relevant«. It is also possible to create other classifications, for instance according to individually defined categories.

RAT also offers extensive sorting and filtering options at the word and requirement level which allow exploration and processing of the requirements list according to user-specified criteria. This makes it possible to group a large list of requirements by content, for instance. Supported languages are German and English.

In the process of requirements consolidation, RAT identifies duplicates or very similar requirements . Also, different spellings or abbreviations of the same word, as well as different terms with the same meanings (e.g. »provide« and »make available«) are identified in the body of requirements and can be standardized by the user.

Requirements quality assurance is at the heart of RAT. It involves testing the requirements for linguistic rules that help users formulate unambiguous requirements. These rules include, for example, identifying passive constructions, incomplete conditions, or weak words in a requirement text, for instance »small« without further specifiers. RAT identifies these potential rule violations, but it remains the responsibility of the project team members to evaluate and, if necessary, to correct these violations. RAT does not make any corrections on its own.

RAT is based on the latest Natural Language Processing (NLP) and Machine Learning techniques.

RAT not only makes it easier for project team members to analyze, explore and consolidate the content of a requirements list, but it also helps to avoid errors triggered by »bad« requirements early on in the procurement process. This is accomplished in part by improving the linguistic quality and thus the clarity of the requirements.

The semi-automated approach of RAT is based on automated hints or suggestions that are either accepted or rejected by users based on their expertise, thereby enabling the continuous improvement of AI algorithms at the same time. RAT helps project team members from any industry to identify errors, inconsistencies, and ambiguously worded requirements early on in the procurement process and to correct linguistic defects. The tool also greatly simplifies searching through a list of requirements, creating an optimal basis for their further processing.

RAT also enables an efficient comparison of project requirements with an existing company portfolio. This promotes the reuse of existing elements, components, and functions while at the same time identifying existing gaps and the need for further portfolio development. The RAT toolkit exists as a demonstrator and is currently in the user testing phase. RAT will be refined continuously and adapted to further customer groups in the future. Individual adaptation to the specific needs of users is of course possible, as far as it is technically feasible.
